CISCO
Rebuild Kits
Some customers are
confident doing the rebuilding themselves; for those customers, we sell
major and minor rebuild kits.
- Our years of rebuilding
experience has allowed us to find and eliminate weaknesses in internal
wear parts
- CISCO uses properly sized
Teflon liners designed to cut down on premature O-ring failure
- All CISCO kits include a
custom measured clutch stack height
- CISCO Major Rebuild kits
come with high quality bearings

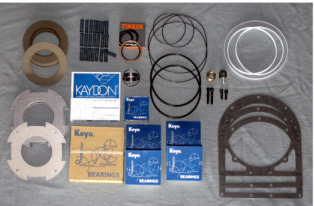

Minor
Rebuild Kit for Size 11 Bescodyne Drive includes
|
QTY |
Description |
|
1 |
Complete
set of Friction Discs (17) and Drive Plates (19) |
22 |
Compression Springs |
|
2 |
#444 O rings |
2 |
#177 O rings |
2 |
#159 O rings |
2 |
Teflon Liners, Housings |
1 |
Teflon Liner, Piston |
1 |
Gasket, Piston |
2 |
Gaskets, Housings |
2 |
Mating Rings |
2 |
Oil Seals |
1 |
Breather |
1 |
Sight Gauge |
4
|
Cap Screws w/washers |
Major Kit for size 11 Bescodyne Drive
Includes all of the above plus bearings listed below:
QTY |
Description |
4 |
Thrust Bearings,
Input/Output Shafts |
1 |
Large Bearing on
Input Shaft |
1 |
Pilot Bearing on
Output Shaft |
1 |
Thrust Plate Bearing |
|
|
| |
|
|

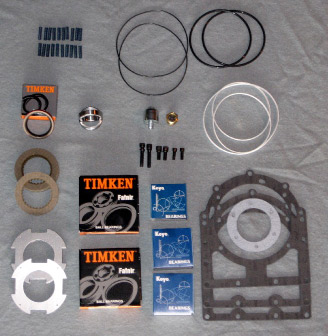

Minor
Rebuild Kit for Size 5 Bescodyne Drive includes
|
QTY |
Description |
|
1 |
Complete
set of Friction Discs (18) and Drive Plates (20) |
20 |
Compression Springs |
|
2 |
#360 O rings |
2 |
#167 O rings |
2 |
Teflon Liners, Housings |
1 |
Teflon Liner, Piston |
1 |
Gasket, Piston |
2 |
Gaskets, Housings |
2 |
Gaskets, Bearing
Retainers |
2 |
Mating Rings |
2 |
Oil Seals |
1 |
Breather |
1 |
Sight Gauge |
6
|
Cap Screws w/4 washers |
Major
Rebuild Kit for Size 5 Bescodyne Drive
Includes all of the above plus bearings listed below:
QTY |
Description |
2 |
Main Bearings
on Input/Output Shafts |
1 |
Large Bearing on
Input Shaft |
1 |
Pilot Bearing on
Output Shaft |
1 |
Thrust Plate Bearing |
4 |
Cap Screws w/
4 washers
|
|

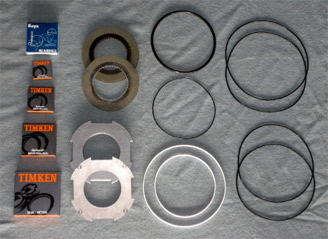

Minor
Rebuild Kit for MB-280 Bescostop Motorbrake includes
|
QTY |
Description |
|
2 |
#267
O rings |
1 |
#440 O rings |
|
2 |
#270 O rings |
1 |
#166 O rings |
1 |
Teflon Liner, Piston |
1 |
Teflon Liner, Housing |
1 |
Mating Ring (#1121) |
1 |
Mating Ring (#1101) |
1 |
Oil Seal (#287) |
1 |
Oil Seal (#230) |
Major
Rebuild Kit for MB-280 Bescostop Motorbrake
Includes all of the above plus bearing and clutch pack.
QTY |
Description |
1 |
Complete Set of
Drive Plates (6) & Friction Discs (5) |
1 |
Shaft Bearing |
|
